Falcon Aerospace

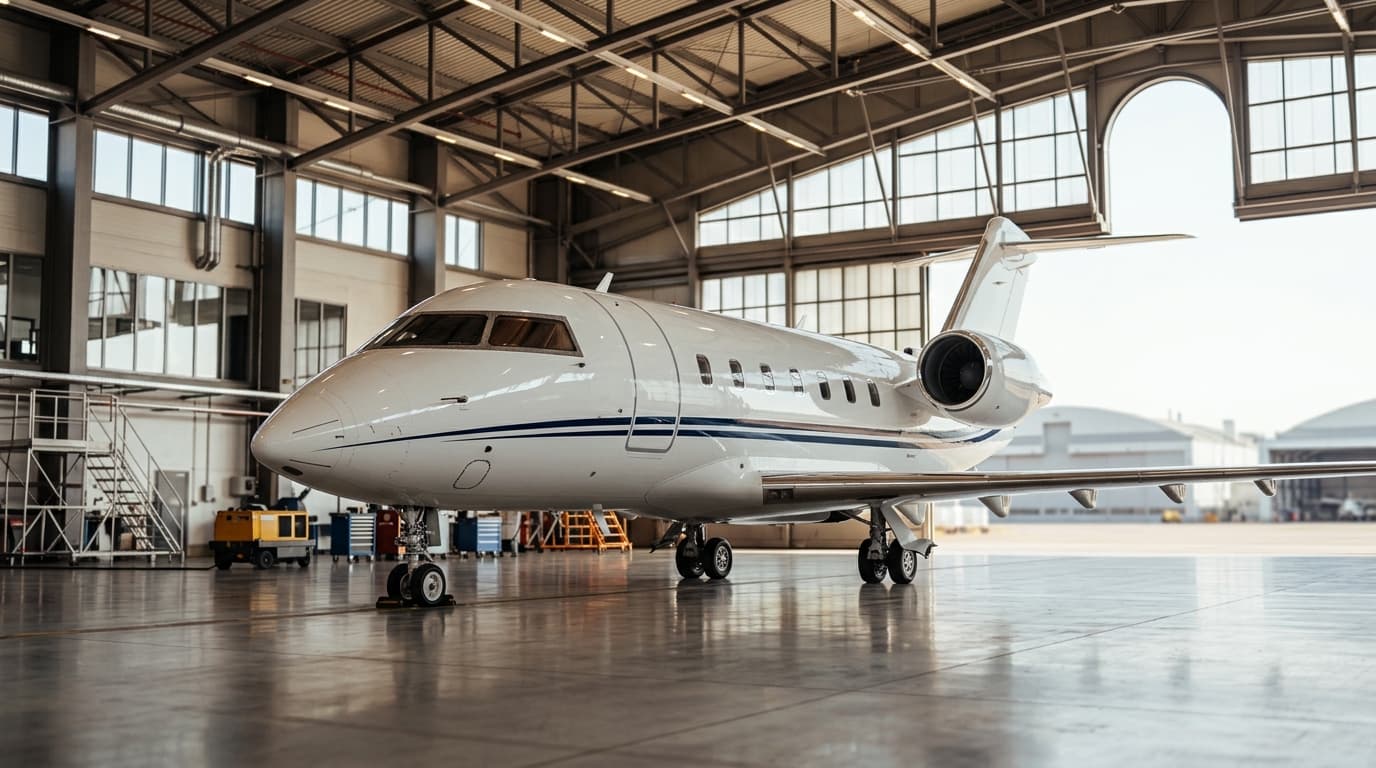

Challenger 605 inside an EASA Part-145 maintenance hangar
BOMBARDIER · CHALLENGER SERIES

Challenger 604 / 605 / 650

WIDE-BODY · TWIN GE CF34-3B · 4,000 NM
AIRCRAFT DETAILS

Cabin · Cockpit · Engines

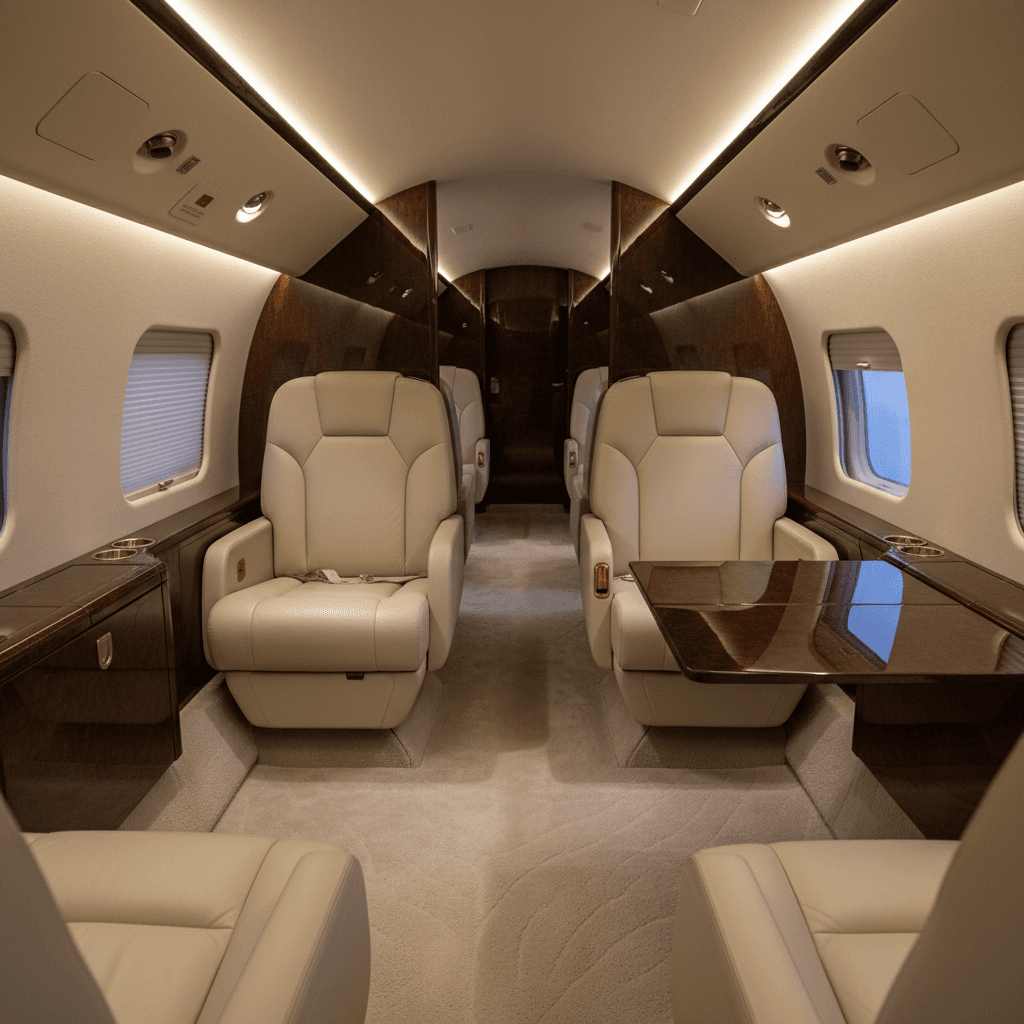

Challenger 650 cabin interior
CABIN

Stand-up wide-body cabin

The 604/605/650 cabin is the largest in the super-midsize wide-body class — 25'7" of usable length, true 7'11" width, and 6'0" stand-up height. Three-zone configuration is typical, with forward club seating, mid-cabin conference grouping, and aft three-place divan.

CABIN LENGTH
25'7"
CABIN WIDTH
7'11"
CABIN HEIGHT
6'0"
MAX PASSENGERS
12 typical
BAGGAGE VOLUME
115 cu ft
Challenger 650 flight deck
COCKPIT

Pro Line 21 Advanced flight deck

Collins Pro Line 4 (604) → Pro Line 21 (605) → Pro Line 21 Advanced (650)

The 650 ships with Pro Line 21 Advanced — synthetic vision, MultiScan weather radar, and dual FMS-6000 with SBAS-WAAS GPS. Falcon performs the 604-to-21 retrofit on customer request.

  • Synthetic Vision System (SVS)
  • MultiScan weather radar
  • Dual FMS-6000, IRS, SBAS-WAAS GPS
  • TCAS II with EGPWS
  • Optional HUD and EVS
GE CF34-3B engine close-up
PROPULSION

GE CF34-3B family

2 × GE CF34-3B (650: -3B MTO)8,729 lbf each (650: 9,220 lbf)

The CF34-3B has been the Challenger 600-series powerplant since 1995. The 650's -3B MTO variant adds maximum-takeoff thrust for hot-and-high performance. Falcon performs HSI coordination and on-condition module repair.

VARIANT BREAKDOWN

Three iterations of the 600-series wide-body

The 604, 605, and 650 share airframe and powerplant family but differ on avionics, cabin systems, and thrust ratings. The chip-row switches between data strips.

Challenger 604

Generation 1 of 3
EIS1995
Built~360
Range4,027 nm
MTOW48,200 lb

Original wide-body 600-series. Pro Line 4 avionics, GE CF34-3B (8,729 lbf). Production 1995-2006.

SPECIFICATIONS

Challenger 650 — full data sheet

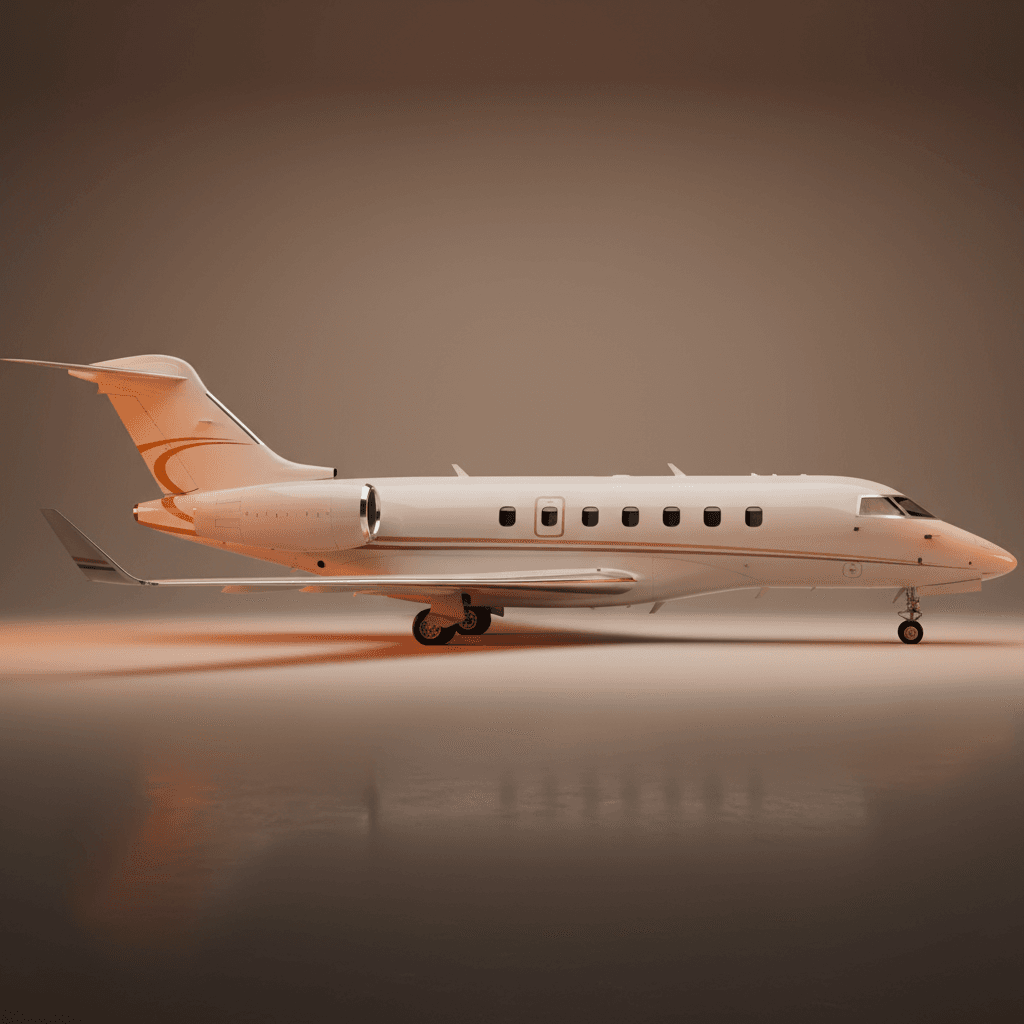

Challenger 604 side profile
Range4,000 nm
Max CruiseMach 0.85
Service Ceiling41,000 ft
MTOW48,200 lb
Takeoff Distance (MTOW)5,640 ft
Cabin (L × W × H)25'7" × 7'11" × 6'0"
Max Passengers12 typical (up to 19)
Engines2 × GE CF34-3B MTO
AvionicsPro Line 21 Advanced
Year of Introduction2015 (650)
Units Built1,000+ family
FALCON CAPABILITY

How we maintain the Challenger 604/605/650

Six capability points specific to the wide-body Challenger family. Falcon's most-supported business jet across over a decade of inputs.

INSPECTION

C-Check signed in-house

Wing-attach, fuselage station, gear bay structural compliance to airworthiness limits.

OEM AUTHORISATION

GE CF34-3B line maintenance

Direct engine OEM partnership; module work coordinated with GE.

AVERAGE TAT

C-Check TAT: 14 days

Tracked over our last 30 Challenger 604/605/650 inputs.

AVIONICS

Pro Line 4 → 21 retrofit

STC packages including SVS, ADS-B Out, FANS 1/A+.

HOURS-ON-TYPE

12,500 hours logged

Across the 600-series fleet since 2009.

AOG

AOG dispatch: 4 hours

Istanbul-based field team on standby 24/7.

GET IN TOUCH

Pre-purchase, scheduled, or AOG — we are ready

Three ways to reach Falcon Aerospace: book a pre-purchase inspection, schedule a maintenance slot, or call the 24-hour AOG line.

Request a PPI quote
